Ac Dc 10 - 50 Amp Auto Range Digital Multimeter High Reliability And Safety

Guilin Huayi Peakmeter Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Ac Dc 10 - 50 Amp Auto Range Digital Multimeter High Reliability And Safety

Brand Name : PEAKMETER

Model Number : PM5318

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 204*93*57mm Product Weight Approx. 580g

Display : 6000 counts

Measuring Inductance : 600µH~200H

Function 1 : Dual Display

Parameters : L/C/R/DCR/Q/D/θ/ESR

Function 2 : Auto LCR smart check and measuring

Product Name : Auto Range Digital Multimeter

Contact Now

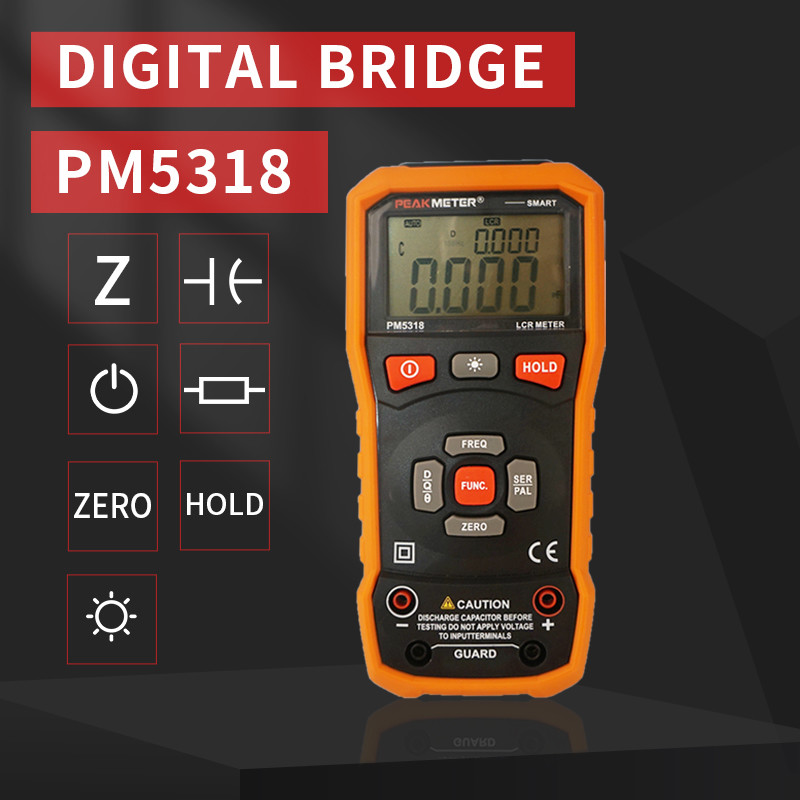

6000 Counts Digital Multimeter With Auto Range And LCR Detection

English User Manual:https://drive.google.com/open?id=1Jr12O5Dnnmc3W30KCC21yFJs0XXz2zZS

It can measure DC/AC Voltage;DC/AC Current, as well as the Temperature,Inductance,Capacitance,

Resistance, Frequency etc. The data will shows on itsDual Display.

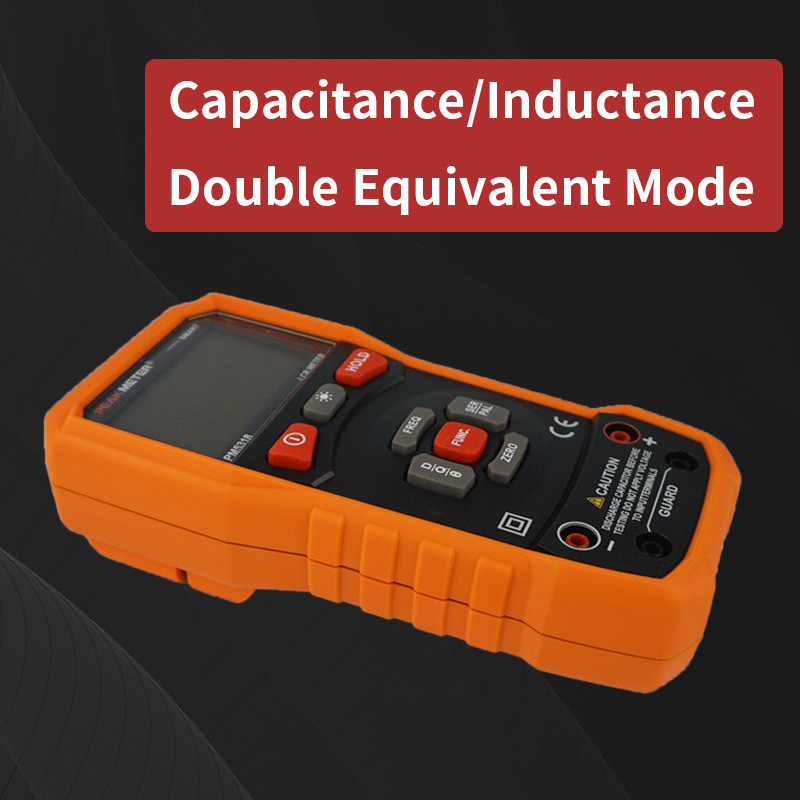

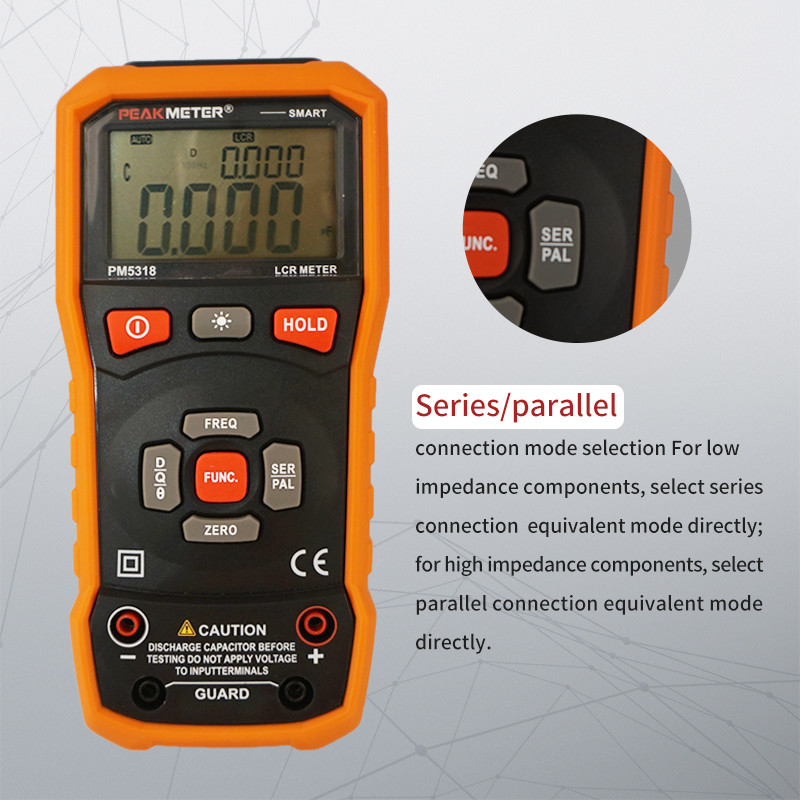

Measuring Mode : SER/PAL

Auto Range,

Dispaly Frequency detection,

Relative Mode,

Atuo LCR Smart Check and Mearusing

Specification

Range Accuracy
PM8246 PM5318
DC Voltage 6V/60V/600V/1000V +/-(1.0%+3)
AC Voltage 6V/60V/600V/1000V +/-(1.2%+3)
DC Current 60mA/600mA +/-(2.0%+3)
AC Current 60mA/600mA +/-(2.0%+3)
Frequency 6000Hz/60kHz/600KHz/6MHz +/-(1.0%+5)
Temperature -20~1000℃ +/-(2.0%+2)
-4~1832 °F +/-(2.0%+2)
Inductance(H) 600uH/6000uH/60mH/600mH/6H/200H +/-(1.0%+5) +/-(1.0%+5)
Capacitance(C ) 600pF/6nF/60nF/600nF/6uF/60uF/600uF/6mF +/-(1.0%+5) +/-(1.0%+5)
Resistance 60Ohm/600Ohm/6kOhm/60kOhm/600kOhm/6MOhm/20MOhm +/-(1.0%+5) +/-(1.0%+5)
Measuring Frequency 100Hz/120Hz/1KHz/10KHz
Parameters L/C/R/DCR/Q/D/ESR
Measuring Voltage 0.5Vrms
Feature
Display 6000Counts 6000Counts
Dual Display Yes Yes
Measuring Mode SER/PAL SER/PAL
Auto Range Yes Yes
Display Test Frequency Yes Yes
Auto Power Off Yes Yes
Data Hold Yes Yes
Relative Mode Yes Yes
Back light Yes Yes
Diode Test Yes
Continuity Yes
Auto LCR smart Check and measuring yes
