Multifunctional Auto Range Digital Multimeter Sound Level Relative Value Measurement

Shenzhen Huayi Peakmeter Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

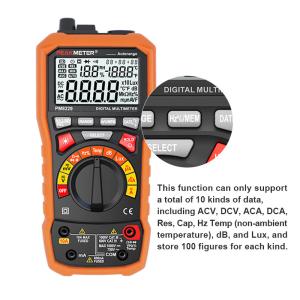

Multifunctional Auto Range Digital Multimeter Sound Level Relative Value Measurement

  • 1
  • 2

Brand Name : PEAKMETER

Model Number : PM8229

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 204mm x93mm x57mm Product Weight Approx. 580g

Product Namee : Auto Range Digital Multimeter

Manual Rang : Yes

Diode test : Yes

Auto Range : Yes

Display : 4000 Counts

Continuity : Yes

Contact Now

Multifunctional Digital Multimeter With AC/DC Current , Sound Level , Relative Value Measurement

English User Manual:https://drive.google.com/open?id=1ljOAGGEPd_lT6xwQYJyYhgGdm4GcmeGR

Features

This instrument can be used to measure DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Capacitance, Frequency and Duty Ratio, Diode Test, Connectivity Test, Temperature, Luminance, Humidity. Manual and automatic range. Convenient exchange makes your measurement more accurate. Relative value measurement function. In this mode, the instrument display value = actual value-set reference value. Large LCD screen with backlight can help the user see the data clearly even in the night. Auto power-off function. If there are no operations within 15 minutes as of the instrument is turned on, the instrument will automatically enter into sleep state.

Features:

· Display: 4000 Counts

· Auto and Manual Range

· Relative Measurement

· Data hold

· Diode test

· Continuity

· Backlight

4 x 1.5V AA Batteries(not inclded)

Product Description

SPECIFICATIONS RANGE ACCURACY
DC Voltage 400mV/4V/40V/400V/1000V ±(0.7%+2)
AC Voltage 400mV/4V/40V/400V/750V ±(0.8%+3)
DC Current 400uA/4000uA/40mA/400mA ±(1.2%+3)
4A/10A ±(2.0%+10)
AC Current 400uA/4000uA/40mA/400mA ±(1.5%+3)
4A/10A ±(3.0%+10)
Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1.2%+5)
Capacitance 40nF/400nF/4uF/40uF/100uF ±(3.0%+3)
Frequency 10Hz/100Hz/1kHz/10kHz/100kHz ±(2.0%+5)
Duty cycle 1%~99% ±(3.0%+2)
Temperature -20℃~1000℃ ±(2.0%+2)
-4℉~1832℉ ±(2.0%+2)
Environment 0℃~40℃ ±2℃
32℉~104℉ ±4℉
Relative Humidity 30%~95% ±5.0%
Sound Level 35dB~100dB ±3.5%
Luminosity 4000Lux/40000Lux ±5.0%
FEATURE
Display 4000 Counts
Auto and manual range
Relative Measurement
Data hold
Diode test
Continuity
Back light
GENERAL
Power supply 4×1.5V AA batteries
Weight Approx.580g
Size 204mm×93mm×57mm
Safety Rating EN61010-1,EN61010-2-033, EN61326,CAT.III 1000V

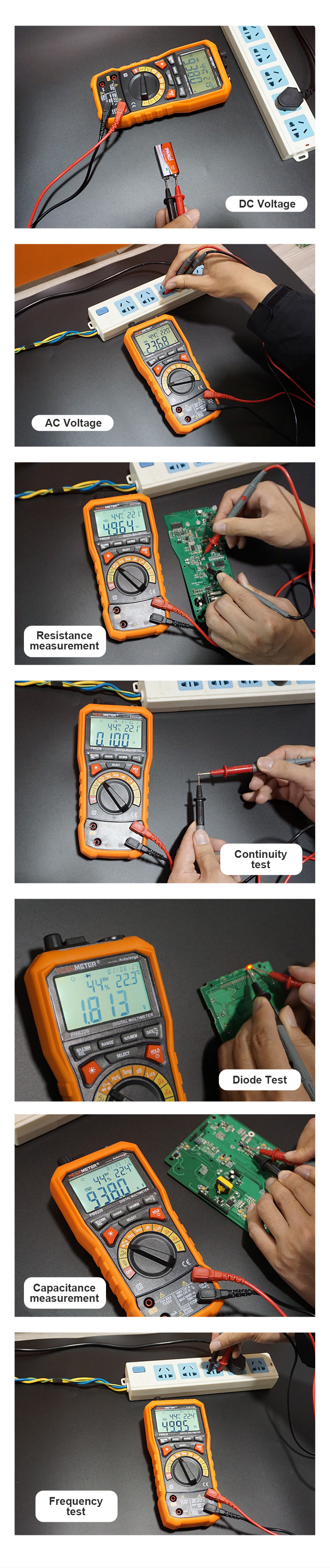

Detailed Images

OUR TARGET

We aim to produce intelligent instruments, provide high quality services, and become an innovative manufacturer.

R&D TEAM

Our R&D team have over 20 years R&D experience in instrument industry .

MISSION

Our mission is to get our work done well to become customer’s reliable business friend. S.E.Q( Service , Economic pricing , Quality ) is our concern , we know what you need ,and we know what we have .

ABOUT US

Shenzhen Huayi Instrument Co.,Ltd is one of the most famous Digital Measuring Instrument Manufacturers in China.It is a National recognized High-tech Company, authorized by Chinese& Shenzhen Government and also a prestige Brand of measuring Meter industry. Technology, Innovation, Customer Satisfication is our culture and eternal pursuit, also is the drive of our sustainable development. Over 20 Years professional R&D Team to ensure our products with advanced technology.Auto / Manual Range Multimeter Clamp Meter With Analogue Bar Graph DisplayAuto / Manual Range Multimeter Clamp Meter With Analogue Bar Graph Display
