Non-Contact Test 6000 Counts T-RMS Frequency Dc Current Multimeter Non - Slip

Shenzhen Huayi Peakmeter Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Non-Contact Test 6000 Counts T-RMS Frequency Dc Current Multimeter Non - Slip

Brand Name : PEAKMETER

Model Number : PM19

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 190mm×89mm×50mm Product Weight Approx. 380g

Counts : 6000

Low Battery Indication : YES

Continuity : YES(Sound and LED Alarm)

Product Nam : Digital Multimeter

Operating Temperature : 0~40

Auto Power Off : YES

Contact Now

Non-Slip Design Auto Range Digital Multimeter With 6000 Counts And Sound and LED Alarm

Features

This meter is a 6000 Counts T-RMS Hand-Held Digital multi-meter. It has a large LCD Screen with Illumination Light and Backlight functions which make it easier for recognize reading to Users.

PM19 has overloading protection function and the indicator of low battery under voltage. As an ideal mulifunctional meter, it can apply to Professionals Measurement Field, Factories, Schools, Enthusiasts or Households.

Function:

Data Hold Function: YES

Non-Contact Test: YES

Diode Test: YES

Continuity Check: YES

Resistance Measurement: YES

Capacitance Test: YES

AC/DC Voltage Measurement: YES

AC/DC Current Measurement: YES

Backlight: YES

Illumination Light Function: YES

Frequency Measurement: YES

Temperature Measurement: YES

Low Battery Indication: YES

Auto Power Off: YES

Product Description

SPECIFICATION RANGE ACCURACY
DC Voltage 600mV/6V/60V/600V/1000V ±(0.5%+3)
AC Voltage 6V/60V ±(0.8%+3)
600V/750V ±(1%+10)
DC Current 60uA/600uA/6mA/60mA/600mA/ ±(0.8%+3)
10A ±(1.2%+3)
AC Current 60uA/600uA/6mA/60mA/600mA/ ±(1.0%+3)
10A ±(1.5%+3)
Ω 600/6k/60k/600k/6M ±(0.8%+3)
60MΩ ±(1.2%+30)
Capacitance(C) 6nF ±(4.0%+30)
60nF/600nF/6uF/60uF/600uF6mF ±(4.0%+3)
100mF ±(5.0%+3)
Frequency 9.999Hz/99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz ±(1.0%+3)
Duty 5%~95% ±(2.0%+3)
℃/℉ -20℃~1000℃/-4℉~1832℉ ±(1.0%+3)
FEATURE
Counts 6000counts
ACV/ACA TRMS
ACV(bandwidth) 1kHz
℃℉
Hz 10MHz
Duty 5%~95%
Ω 60MΩ
Capacitance 100mF
Continuity √(Sound and LED Alarm)
Diode Test
Low Battey Indication
Worklight √(high,medium and low)Sound and LED Alarm
NCV
Auto Power Off
GENERAL
Power supply 4×1.5V AA batteries
Weight Approx.580g
Size 194mm×90mm×55mm
Safety Rating EN61010-1,EN61010-2-033, EN61326,CAT.III 1000V

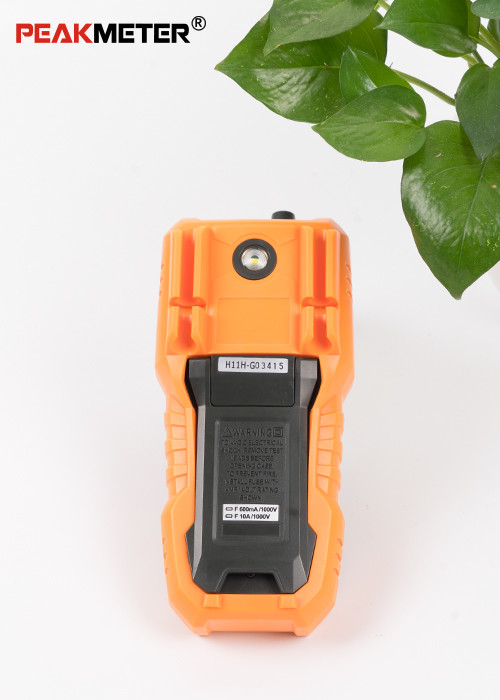

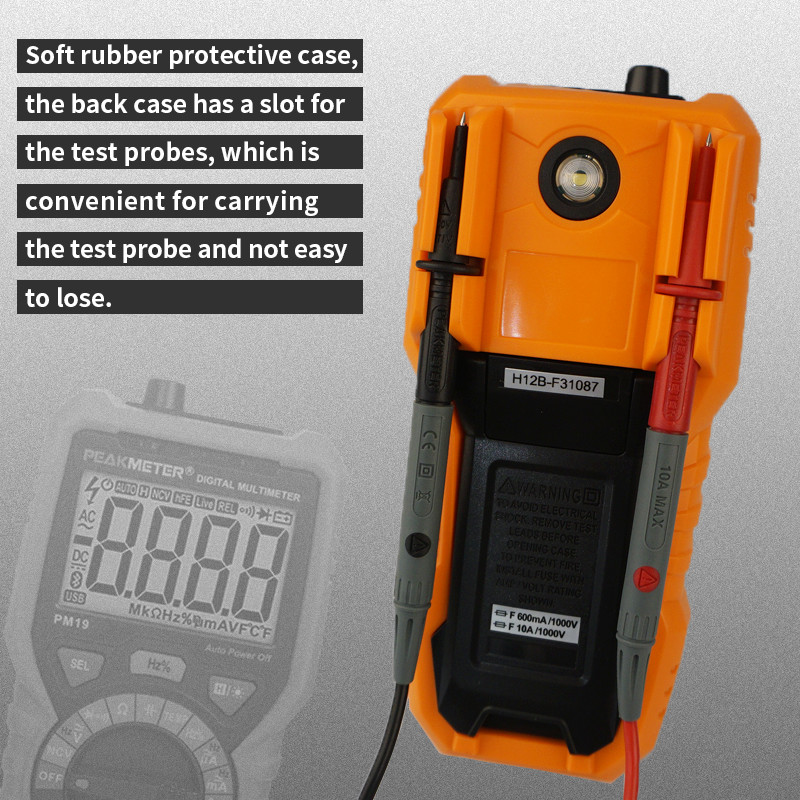

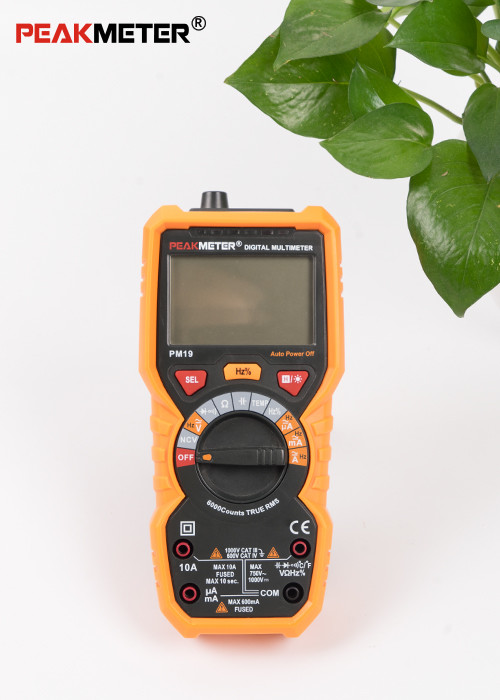

Detailed Images

OUR TARGET

We aim to produce intelligent instruments, provide high quality services, and become an innovative manufacturer.

R&D TEAM

Our R&D team have over 20 years R&D experience in instrument industry .

MISSION

Our mission is to get our work done well to become customer’s reliable business friend. S.E.Q( Service , Economic pricing , Quality ) is our concern , we know what you need ,and we know what we have .

ABOUT US

Shenzhen Huayi Instrument Co.,Ltd is one of the most famous Digital Measuring Instrument Manufacturers in China.It is a National recognized High-tech Company, authorized by Chinese& Shenzhen Government and also a prestige Brand of measuring Meter industry. Technology, Innovation, Customer Satisfication is our culture and eternal pursuit, also is the drive of our sustainable development. Over 20 Years professional R&D Team to ensure our products with advanced technology.Auto / Manual Range Multimeter Clamp Meter With Analogue Bar Graph DisplayAuto / Manual Range Multimeter Clamp Meter With Analogue Bar Graph Display
