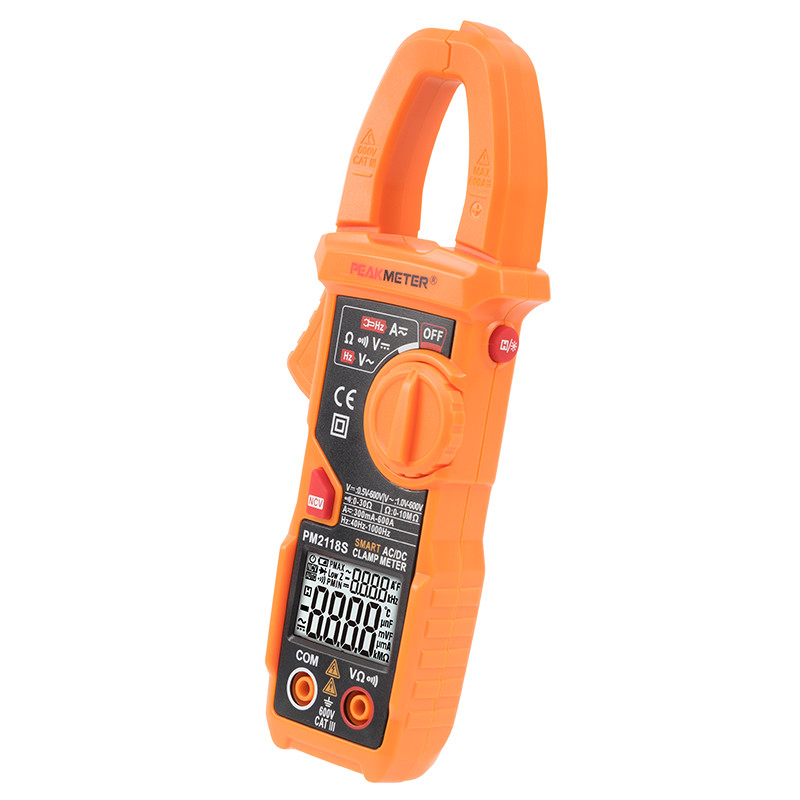

Portable AC DC Current Clamp Meter , Earth Leakage Clamp Meter With NCV Detection

  • 1
  • 2
  • 3

Brand Name : PEAKMETER

Model Number : PM2118S

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 250mm x99mm x43mm Product Weight Approx410g

Display : 6000 counts

Function 1 : NCV

ACV(AC+DC) : 6V/60V/600V

Function 2 : Auto Range

Dual Display : ACV +Freq, ACA +Freq

Product Name : Digital Clamp Meter Multimeter

Contact Now

Portable Smart AC/DC Measurement Digital Clamp Multimeter With NCV Detection

Features

This Smart AC/DC Clamp multimeter is an innovative, which is breaking through the traditional clamp Multimeter type. It is a revolutionary product of measurement tools, which is a unique type prior to the world's major instrument manufacturers. The product features possess current measurement and simultaneously display the current frequency, voltage measurement with frequency display, voltage and current can be measured at the same time, the display screen shows the voltage and current . Its designed is according to EN61010-1, EN61010-2-032, and CAT.III600V Concerning Safety Requirements.

  1. Automatically select measurement and range.
  2. Overload protection for the whole measurement range.
  3. Data hold function low power indication, and auto power off
  4. Maximum allowable voltage between the measuring terminal and the Earth:6000V DC or 6000V AC.
  5. Professional AC Voltage Detector with NCV Detection.
  6. High quality and easy-to-use.
  7. Mini and easy to carry

Product Description

SPECIFICATIONSRANGEACCURACY
DCV0.5~600.0V±(0.5%+3)
ACV(40~65Hz)1.0~600V±(0.8%+5)
Ω0~10MΩ±(0.8%+3)
Continuity<30Ω<30Ω
ACA(40~65Hz)200mA~400A±(2.5%+5)
DCA400A~600A±(3%+5)
300mA~600A±(3%+10)
Frequency40Hz-1000Hz1%rdg
FEATURE
Counts6000
RANGEAuto
ACA(AC+DC)60A/600A
DCA60A/600A
DCV6V/60V/600V
ACV(AC+DC)6V/60V/600V
Continuity
Ω6kΩ/60kΩ/600kΩ/6MΩ/10MΩ
V/Ω/A Auto Scan
Frequency(Clamp)1KHz
Frequency(Voltage)1KHz
Data Hold
BackLight
NCV
Low Battery Indication
Auto Power Off
Dual Didplay
GENERAL

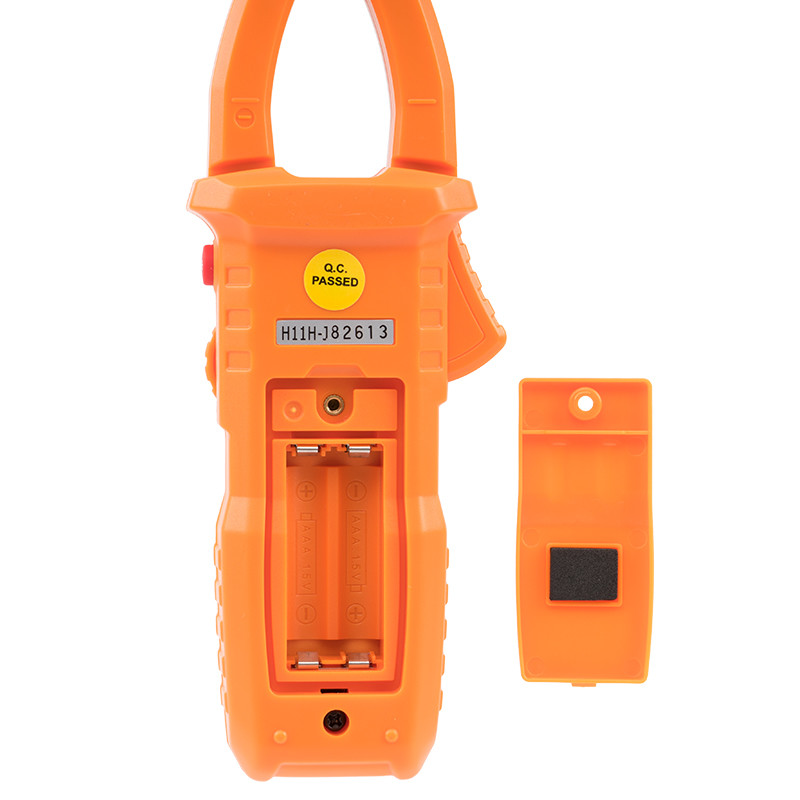

Power supply2×1.5V AAA Battery
Weight250g
Size187×65×38mm
Jaw Sizeφ24mm
Safety RatingEN61010-1,EN61010-2-032, EN61326,CAT.III 600V

Detailed Images

OUR TARGET

We aim to produce intelligent instruments, provide high quality services, and become an innovative manufacturer.

R&D TEAM

Our R&D team have over 20 years R&D experience in instrument industry .

MISSION

Our mission is to get our work done well to become customer’s reliable business friend. S.E.Q( Service , Economic pricing , Quality ) is our concern , we know what you need ,and we know what we have .

ABOUT US

Shenzhen Huayi Instrument Co.,Ltd is one of the most famous Digital Measuring Instrument Manufacturers in China.It is a National recognized High-tech Company, authorized by Chinese& Shenzhen Government and also a prestige Brand of measuring Meter industry. Technology, Innovation, Customer Satisfication is our culture and eternal pursuit, also is the drive of our sustainable development. Over 20 Years professional R&D Team to ensure our products with advanced technology.





Product Tags:

earth leakage clamp meter



ac dc current clamp meter


China Portable AC DC Current Clamp Meter , Earth Leakage Clamp Meter With NCV Detection wholesale

Portable AC DC Current Clamp Meter , Earth Leakage Clamp Meter With NCV Detection Images
