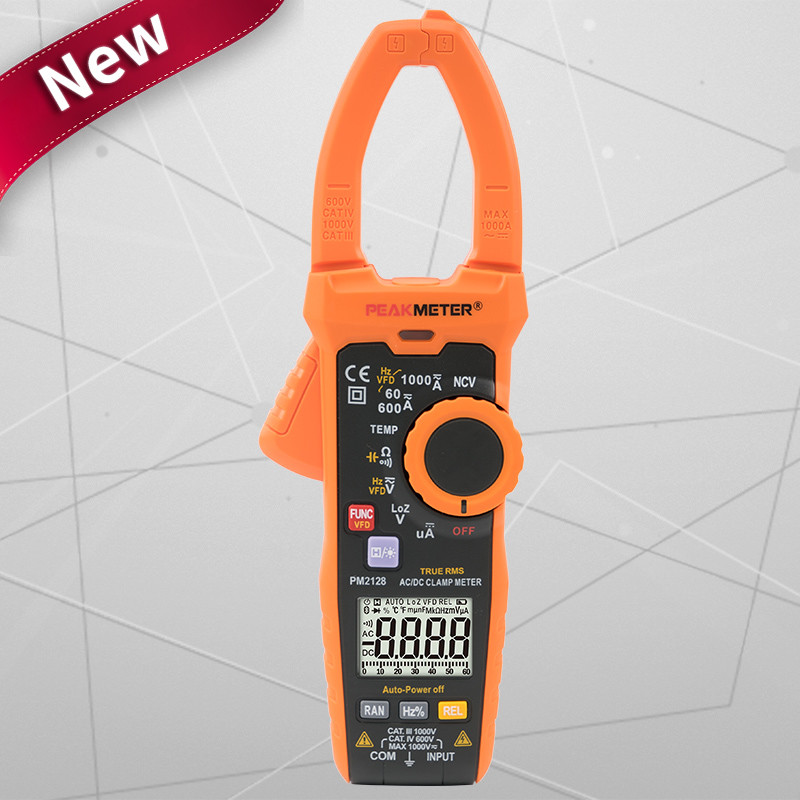

Auto And Manual Range Digital Clamp Meter Multimeter With Analogue Bar Graph Display
Features
This Smart AC/DC Clamp multimeter is an innovative, which is breaking through the traditional clamp Multimeter type. It is a revolutionary product of measurement tools, which is a unique type prior to the world's major instrument manufacturers. PM2128S is a portable professional measuring with NCV and backlight easily reading. This is a meter that has many functions, DC AC Voltage, AC DC Current, Resistance, Capacitance, Frequency, Temperature, LowZ and DC uA, etc.
- Automatically select measurement and range.
- Overload protection for the whole measurement range.
- Data hold function low power indication, and auto power off
- Professional AC Voltage Detector with NCV Detection.
- High quality and easy-to-use.
- Mini and easy to carry
Product Description
| SPECIFICATIONS | RANGE | ACCURACY |
| DC Voltage | 0.5V～600.0V | ±(0.5%+3) |
| AC Voltage(40～65Hz) | 1.0V～600.0V | ±(0.8%+5) |
| Ω | 0～10MΩ | ±(0.8%+3) |
| Continuity | <30Ω |
| ACA(40～65Hz) | 10mA～1000A | ±(2.5%+8) |
| DCA | 500mA～1000A | ±(3.0%+10) |
| Frequency | ±(1%rdg+5) |
| FEATURE |
| Counts | 6000 |
| ACA | 60A/600A/1000A |
| DCA | 60A/600A/1000A |
| DCV | 6V/60V/600V |
| ACV | 6V/60V/600V |
| Continuity | √ |
| Ω | 6kΩ/60kΩ/600kΩ/6MΩ/10MΩ |
| V/Ω/A/Cap Auto Scan | √ |
| Frequency(Clamp) | 1KHz |
| Frequency(Voltage) | 1KHz |
| Data hold | √ |
| Back light | √ |
| NCV | √ |
| Auto Power Off | √ |
| Dual Display | √ |
| GENERAL |
| Power Supply | 3×1.5V AAA Battery |
| Weight | 380g |
| Size | 246mm×85mm×40mm |

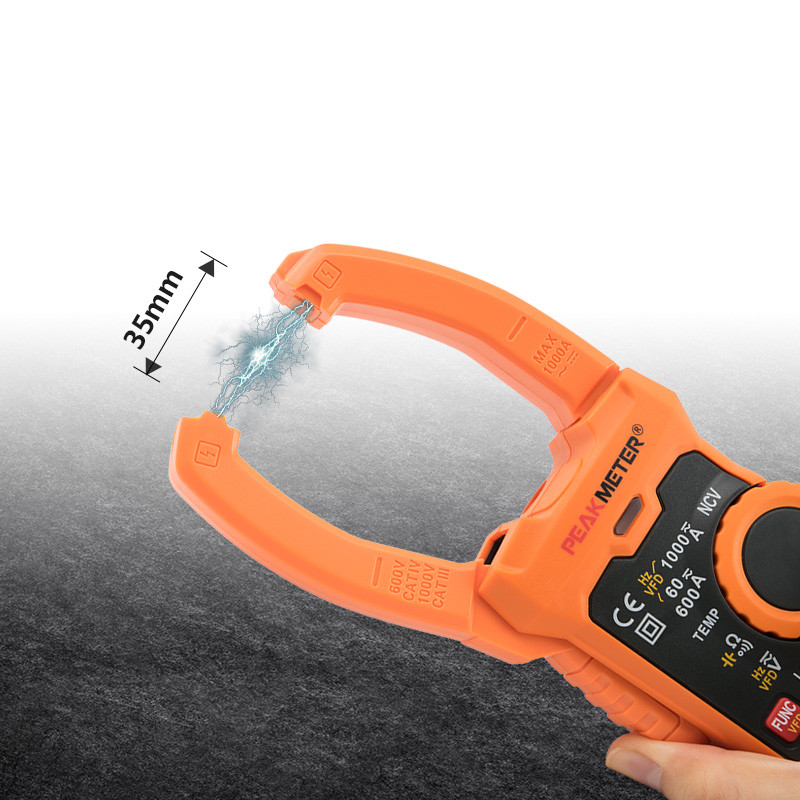

| Jaw Size | φ35mm |
| Safety Rating | EN61010-1 EN61010-2-032, EN61326 CAT.Ⅲ 1000V |
