Digital Clamp Meter With Unit Megohmmeter And Resistance Earth Ground Testing
English User Manual:https://drive.google.com/open?id=1QPfuMB8L6i2Pvo4zQOOKwclPAJrWRvPp
Features of Digital Clamp Meter
- Automatically select measurement and range.
- Overload protection for the whole measurement range.
- Data hold function low power indication, and auto power off
- Professional AC Voltage Detector
- High quality and easy-to-use.
- Mini and easy to carry
| Specification | Range | Accuracy |
| AC Current | 60A/600A | ±(2.5%+5) |
| Inrush Current | 60A/600A | ±(10.0%+60) |
| DC Current | 60A/600A | ±(3.0%+10) |
| DC Voltage | 6V/60V | ±(0.5%+3) |
| 600V/1000V | ±(0.8%+3) |
| AC Voltage | 6V/60V | ±(0.8%+5) |
| 600V/1000V | ±(1.0%+5) |
| Frequency(By A range) | 10Hz/100Hz/1kHz | ±(1.5%+5) |
| Frequency(By Hz range) | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(0.5%+5) |
| Duty Cycle | 1%~99% | ±(3.0%+2) |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ | ±(1.0%+3) |
| 60MΩ | ±(2.0%+3) |
| Capacitance | 10nF/100nF/1μF/10μF/100μF | ±(3.0%+5) |
| 1mF/10mF | ±(4.0%+5) |
| 100mF | ±(5.0%+5) |
| Temperature | -20℃~1000℃ | ±(1.0%+2) |
| -4℉~1832℉ |
| Feature |
| Display | 6000 counts |
| MAX/MIN | √ |
| Relative value measurement | √ |
| Auto Range | √ |
| Inrush Current measurement | √ |
| Data Hold | √ |
| Back Light | √ |
| Flash Light | √ |
| VFD measurement | √ |
| Temperature measurement | √ |
| LowZ | √ |
| General |
| Power Supply | 3*1.5V AAA Batteries |
| Weight | About 340g (Included batteries) |
| Size | 280mm*78mm*35mm |
| Jaw Size | φ26mm |
| Safety Rating | IEC-61010-1,IEC-61010-2-030,IEC-61010-2-032,CAT Ⅱ1000V ,CAT Ⅲ600V |
Product Description of Digital Clamp Meter

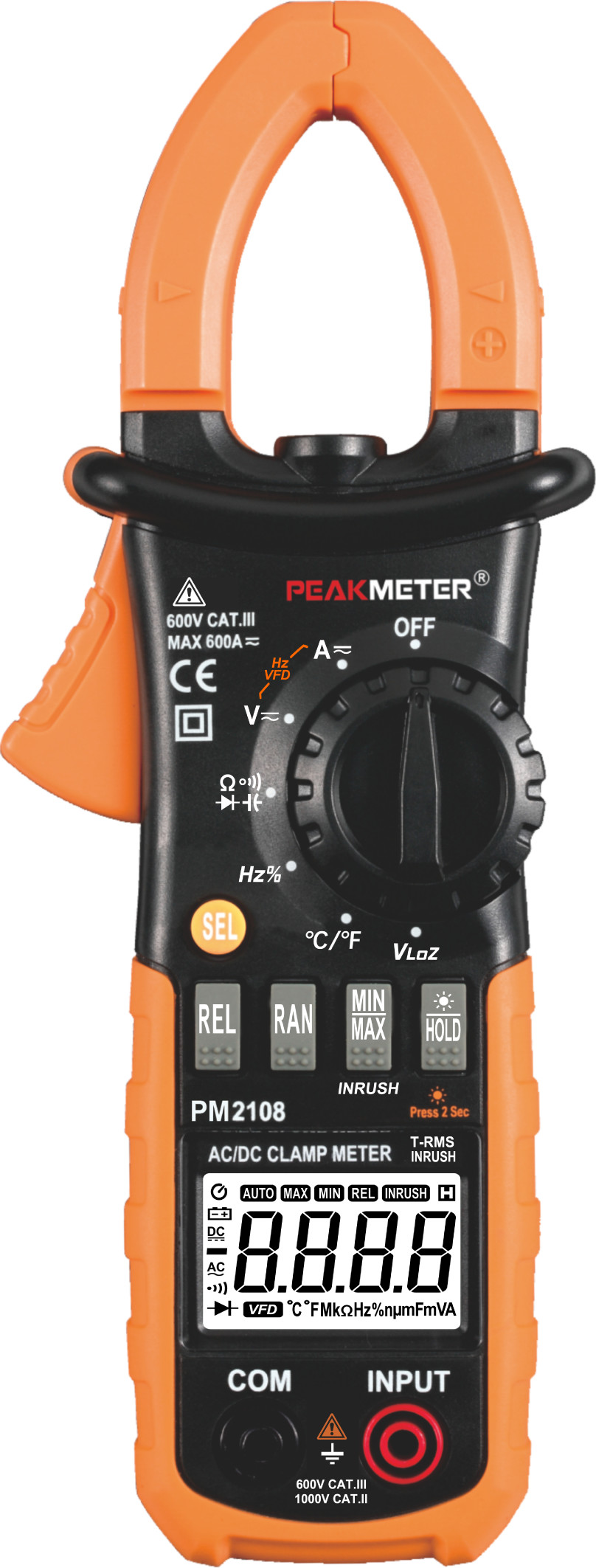

This Smart AC/DC Clamp multimeter is an innovative, which is breaking through the traditional clamp Multimeter type. It is a revolutionary product of measurement tools, which is a unique type prior to the world's major instrument manufacturers. PM2108 is a portable professional measuring with backlight easily reading. This is a meter that has many functions, DC AC Voltage, AC DC Current, Resistance, Capacitance, Frequency, etc.
- The meter can perform measurement of AC/DC voltage and current, current, resistance, frequency, duty, capacitance, as well as continuity and diode test.
- This meter is equipped with reading hold function.
- This meter is equipped with maximum value measuring function.
- This meter can measure frequency by clamp.
