Mini Handheld Digital Multimeter 10A DC Current Measurement Data Hold Meter

Brand Name : PEAKMETER

Model Number : PM8233B

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 148mm*74mm*42mm Product Weight Approx. 173g

Voltage : AC/DC 600V

Function 1 : Backlight

Display : 2000 counts

Function 2 : Auto Power Off

Resistance : 200Ω~2MΩ

Product Name : Mini Handheld Digital Multimeter

Contact Now

Mini Handheld Digital Multimeter 10A DC Current measurement Data Hold Meter

Features of Mini Handheld Digital Multimeter

  • Fuse protection: F 250mA/250V 10A/250V
  • Measuring method: Dual-slop integration A/D converter
  • Measuring AC/DC Voltage
  • Measuring DC Current
  • Diode and Continuity Test

Specifications Range Accuracy
DC Voltage 200mV/2V/20V/200V ±(0.5%+2)
600V ±(0.8%+2)
AC Voltage 200V/600V ±(1.2%+10)
DC Current 200µA/2mA/20mA ±(1.0%+2)
200mA ±(1.5%+2)
10A ±(3.0%+2)
Resistance 200Ω/2kΩ/20kΩ/200kΩ ±(0.8%+2)
2MΩ ±(1.0%+2)
Features
Display 2000 counts
Data Hold √
Auto Power Off √
Diode Test √
Backlight √
Continuity √
General

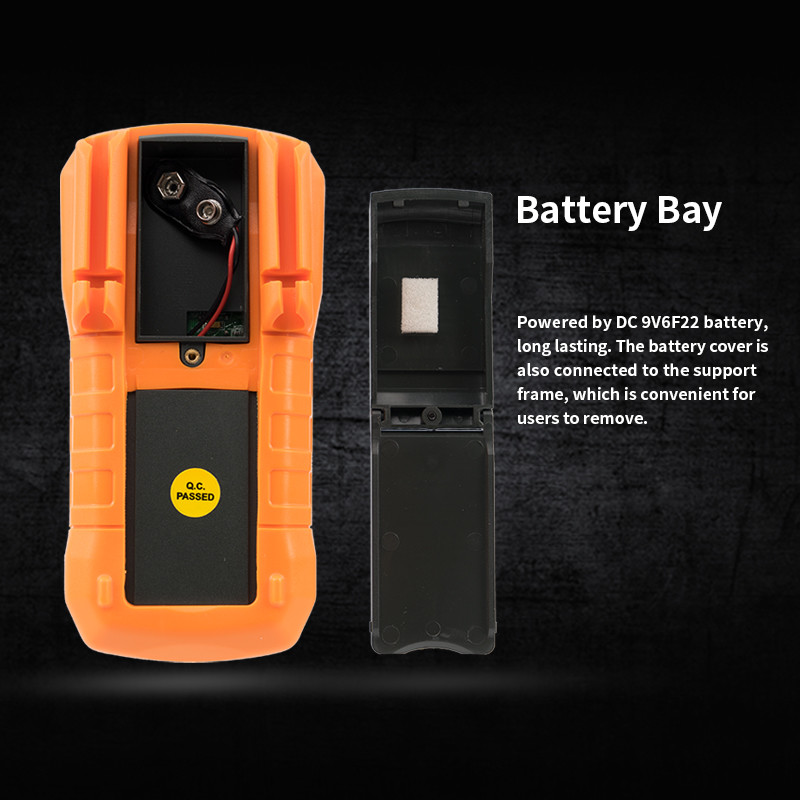

Power Supply DC 9V6F22 battery
Net weight Approx.173g(battery is not included)
Gross weight 318g
Size 148mm*74mm*42mm
Safety Rating EN61010-1, 61010-2-033, EN61326, CAT. Ⅲ 600V

Description of Mini Handheld Digital Multimeter

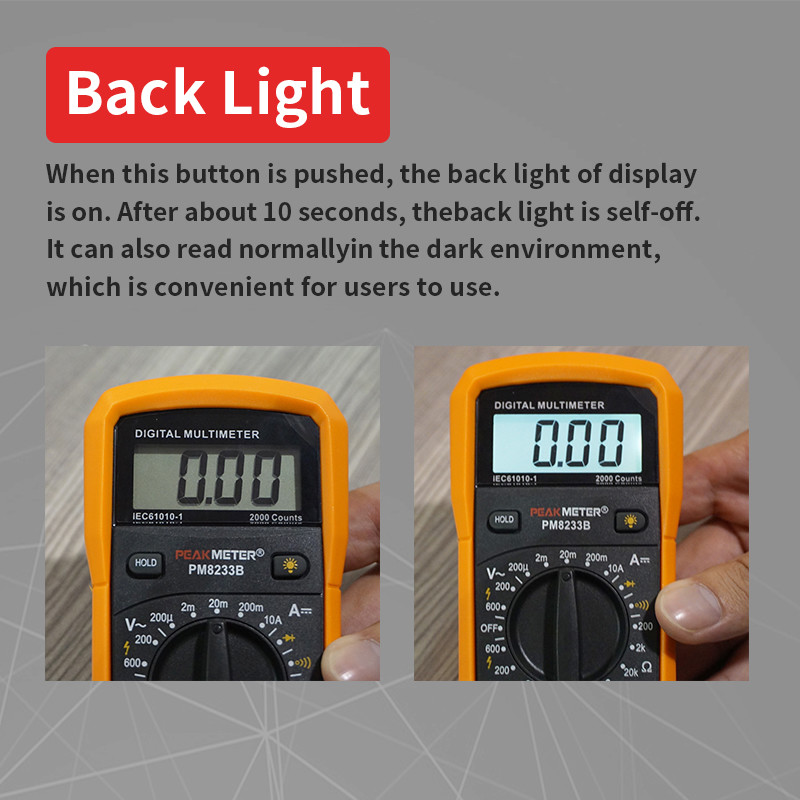

PM8233B is a small handheld digital multimeter. It is a 31/2-digit, 15mm character height, 7-segment LCD display. The backlight design enables users to read data normally even in dark environments. The meter is small but feature-rich, measuring AC and DC voltage, DC current, resistance, and performing diode and continuity tests. It has a novel structure and a pen slot on the back. This is a measuring instrument worth having.

Mini Handheld Digital Multimeter 10A DC Current Measurement Data Hold MeterMini Handheld Digital Multimeter 10A DC Current Measurement Data Hold MeterMini Handheld Digital Multimeter 10A DC Current Measurement Data Hold Meter
